Every part is engineered for seamless integration, superior waterproofing, and effortless installation.
1
Dust & Flow Control Strip
Material: Silicone Foam
Function: For dust prevention and flow restriction.
2

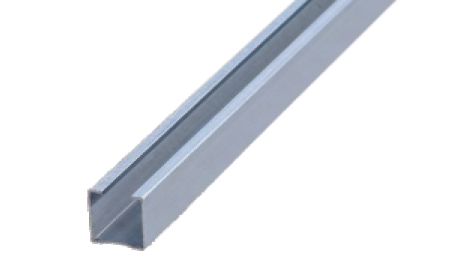

Support Cable Tray
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Prevents sagging of horizontal structures and serves as a DC cable duct.
3

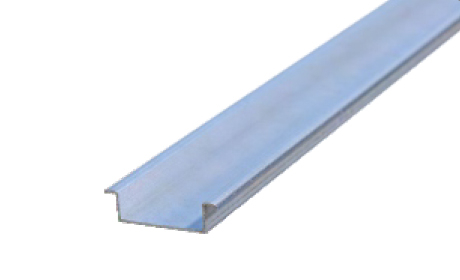

Horizontal Structure (Secondary Gutter)
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Structural support and diversion of water seeping through component gaps.
4

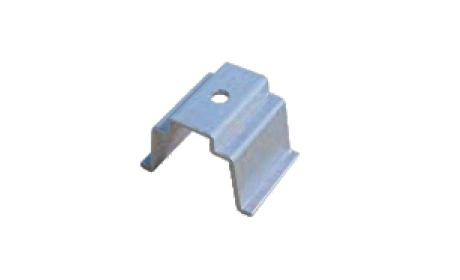

Pull Hook
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Secures component assemblies.
5

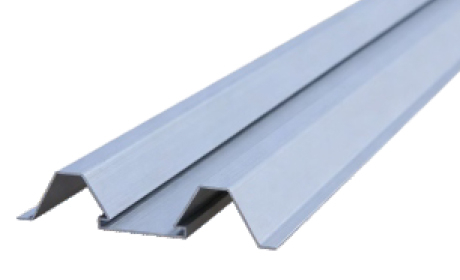

Longitudinal Structure (Main Gutter)
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Structural support and diversion of water seeping through component gaps.
6

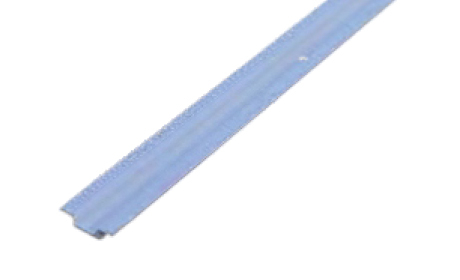

Integrated Cover Strip
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Fastens components, prevents dust ingress and controls water flow.
1
Dust & Flow Control Strip
Material: Silicone Foam
Function: For dust prevention and flow restriction.
2
Support Cable Tray
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Prevents sagging of horizontal structures and serves as a DC cable duct.
3
Horizontal Structure (Secondary Gutter)
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Structural support and diversion of water seeping through component gaps.
4
Pull Hook
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Secures component assemblies.
5
Longitudinal Structure (Main Gutter)
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Structural support and diversion of water seeping through component gaps.
6
Integrated Cover Strip
Material: ZAM(Zinc-Aluminum-Magnesium)
Function: Fastens components, prevents dust ingress and controls water flow.
Three Core Innovations
Engineered with a focus on flow control, drainage efficiency, and fire safety - setting new standards for BIPV roofing systems.
Flow Limiting
The integrated cover strip combined with the dust-proof flow limiter precisely controls water flow rate, preventing overflow and ensuring secondary waterproof performance.
Flow Guidance
A well-connected "vertical and horizontal structure" guides leaking rainwater to the gutter. The pressure-relief block design further facilitates smoother flow in the longitudinal structure.
Flame Retardant
Support cable trays neatly organize DC cables within professional cable trays, providing both excellent flame retardancy and a clean, aesthetically pleasing appearance.
Features and Advantages
Every feature is designed to reduce cost, extend lifespan, and maximize energy yield for industrial and commercial solar projects.
Superior Waterproofing
Class II waterproof rating. Multi-layer sealing ensures zero leakage even under extreme weather.
Seamless Integration
Perfectly matches existing roofing systems. No complex adapters or custom fabrication required.
Chimney Effect
Ventilated design creates natural airflow, reducing module temperature and increasing power output by up to 5%.
High Safety Factor
Engineered for 0.65kN/m² snow load and 42m/s wind load. Exceeds international building codes and will not scatter.
Roof Replacement
Directly replaces traditional color steel tiles — saving the cost of separate roofing and mounting systems.
Easy Installation
Modular design with quick-connect components. Reduces installation time by 40% vs. conventional systems.
Premium Material
Al-Mg alloy construction. Corrosion-resistant, high-strength, and built for 30+ year service life.
Long Service Life
Al-Mg alloy doesn't rust or degrade. BIPV rooftop power generation lasts 25 years, and the roof itself over 30 years.

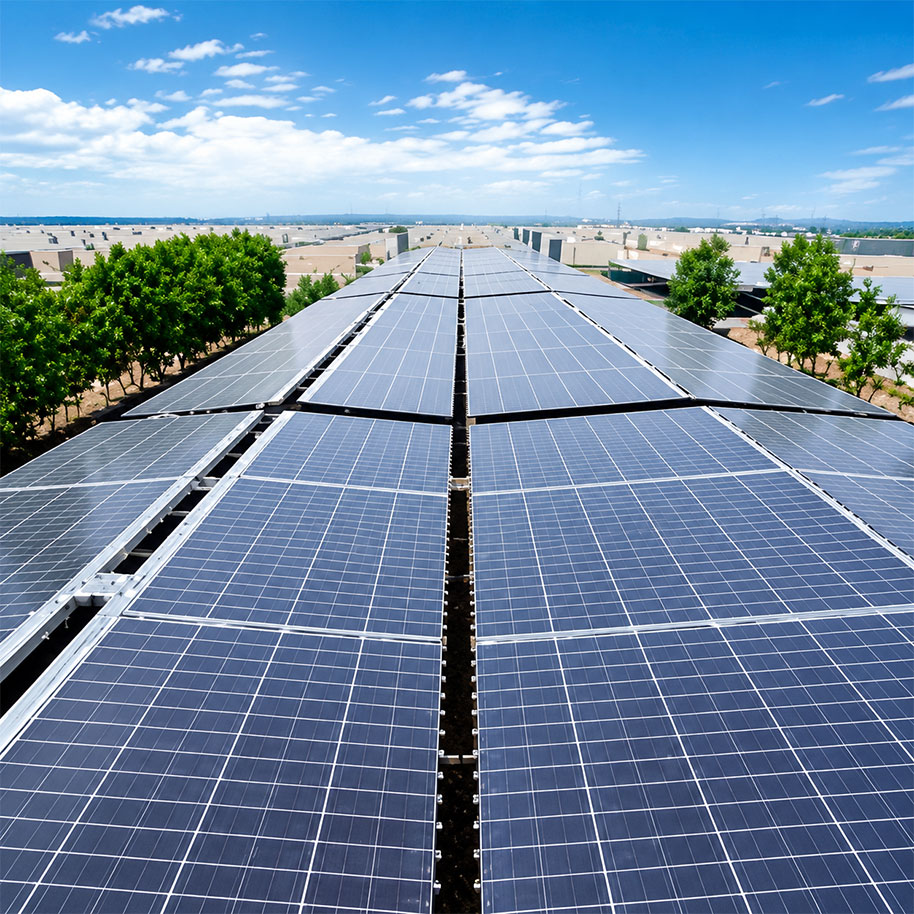

Proven Economic Benefits
01
Savings on Steel Roofing Construction
Baosteel materials plus labor run ~¥80/m². A 10,000m² factory roof saves approximately ¥800,000 upfront.
02
Savings on Roofing Replacement
Removal, repair, and re-laying cost ¥900,000+ for a 10,000m² roof — and in heavily polluted areas, replacement may be needed every 6 years.
03
Electricity Bill Savings
At an 8.5% discount and ¥0.80/kWh peak-average price, each kWh saves ¥0.12. A 10,000m² roof generates ~1.2M kWh/year, saving approximately ¥150,000 annually.
04
Additional Benefits
Qualifies for regional government energy-saving subsidies, and builds a strong low-carbon corporate image.
Ready to Upgrade Your Roof to a Power Plant?
Contact our engineering team for a customized BIPV solution quote tailored to your facility's roof area, local climate, and energy goals.
Anhui Yuxin New Material Co., Ltd. is a professional manufacturer specializing in BIPV (Building Integrated Photovoltaic) mounting systems for industrial and commercial rooftops.
